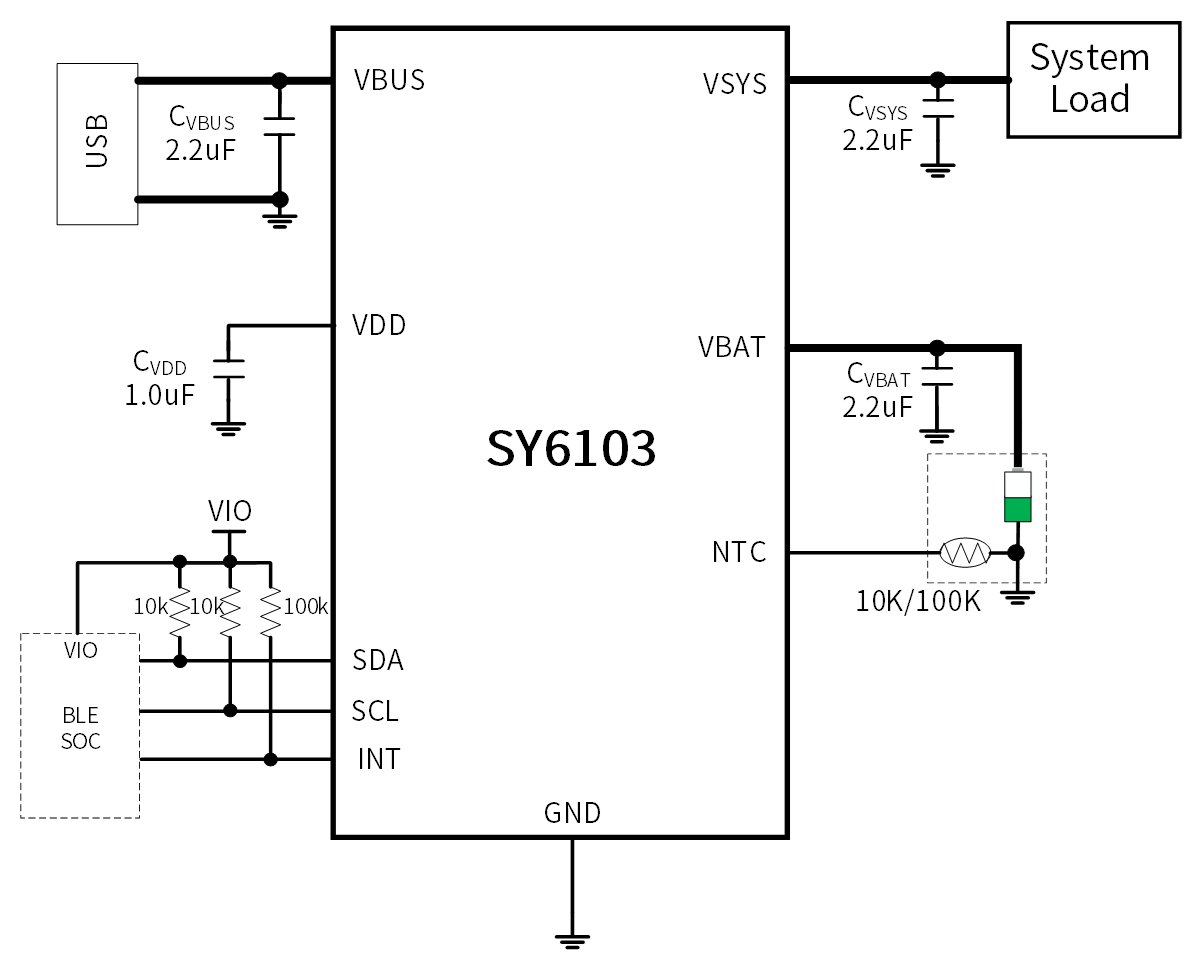

The SY6103 is a 500mA, highly integrated single cell linear battery charger IC with power path management for wearable and IoT devices using Li-ion/Li-Polymer batteries. The I2C serial interface with charging and system setting can be allowed to be controlled flexibly.
The SY6103 can automatically complete charger phase include pre-charge, fast charge, charge termination. Also monitor battery temperature during charging. Power path management will provide higher priority system load even with depleted battery.
The device owns full system reset, include watchdog and PWRKEY reset, also supports ship mode to save power consumption.
The SY6103 is available in a 1.725m x 1.725m, 9-ball/0.5-pitch CSP package.
Linear Single Cell Battery Charge: ±0.5% charger voltage regulation; 28V maximum input voltage rating; Max to 456mA CC current with 8mA step; Low to 1mA terminal current with 1mA step; CV voltage 4.0-4.5V with 12.5mv step; Support TOPOFF timer after termination; Support safety timer during charging; Support internal or external NTC connection and JEITA compliance; Support battery exist/absent detection
Power Path Management
Max to 500mA IINDPM with 100mA step
Default 4.6V VINDPM
Support Supplement mode from battery during DPM happens
Support PWRKEY and COLD Reset
I2C interface configure function options
Full charging and fault status indication and report to host via INT
Full device protection，include OVP/OCP/SCP/OTP
Support Ship mode: Low to 500nA current; Configurable BATFET_DIS delay time; Configurable time and action to wake up from ship mode
Safety-related certification:IEC62368-1 CB certification
IoT device
Smart watches
BT headsets/TWS earbuds
